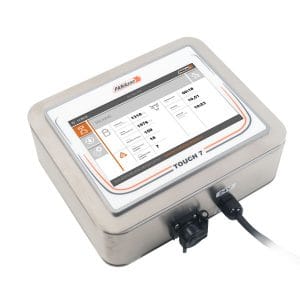

Touch 7
Touch 7 - Image 2
Touch 7 - Image 3

Touch 7

Ref: 79800 Category:

Remote System for general summary MM COMPACT touch screen
TRUE GLASS capacitive
Visualizzations of the following informations:
Total Milk quantity per session per day,Total Milking Attach,
Total Allarm Information,Total Milking time,Average Milking time per cow
PreMilking Time,Daily Forecast,Washing time,Average Milk Temperature
Average Washing Temperature,Maximum and Minimum washing temperature
Conductivity wash solution,Maximum conductivity wash solution
Saving data and export by USB 2.0 format.TXT
Internet / Ethernet Conneciton
Automatic daily report via email settable
Yearly saving data back up automatic
Connection MM COMPACT via BUS DATA

Protection waterproof frontal IP 69 Display 7”TFT 16:9 LED Touch screen TRUE GLASS capacitive 128 Mb Flash Ethernet Support USB 2.0 Support SD CARD Power supply 10 a 32 Volt DC Power compsumation 0,81 A a 24 volt DC Working temperature from -20 to + 70 °C Weight Kg.1,8 Approval : CE, DNV, ATEX/ CLASS I, Div. 2 Haz.Loc.

Options

Power Supply

12/24 VAC – VDC
Consumption

0,33 Amp
Dimension

225 x 185 x 80 mm
Weight

2,3 Kg
